HB-705/HB-707

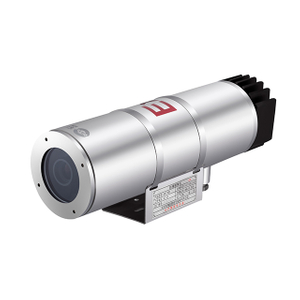

Explosion-proof Micro Infrared HD Camera
Functional characteristics
● Structure features: using the camera and infrared lamp integrated design, built-in focal infrared bullet network camera
● Window glass: special explosion-proof glass, surface treated by nanotechnology, high optical pass rate, non-adhesive water, non-oil viscosity and dust exclusion
● Resolution: 2MP / 3MP / 4MP / 5MP (optional)
● Lens focal length: 4 / 6 / 8mm fixed focus (optional)
● Night vision light distance: 30 meters
Main parameters
● Explosion-proof mark: Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃
● Minimum illumination: 0.005Lux /F1.2(color), 0.001Lux /F1.2(black and white)
●Image function: 3D noise reduction, wide dynamics, strong light inhibition, backlight compensation
● Intelligent detection: mobile detection
● Operating temperature: -40℃~+ 60℃
● Power supply mode: DC12V/POE
● Protection level: IP68
● Product material: 304 / 316L stainless steel material (optional)
Application scenarios:
the product is small in volume, light in weight, convenient in installation, suitable for tanker trucks, flammable and explosive places with small space and close monitoring
HB-705/HB-707
Explosion-proof Micro Infrared HD Camera
Functional characteristics
● Structure features: using the camera and infrared lamp integrated design, built-in focal infrared bullet network camera
● Window glass: special explosion-proof glass, surface treated by nanotechnology, high optical pass rate, non-adhesive water, non-oil viscosity and dust exclusion
● Resolution: 2MP / 3MP / 4MP / 5MP (optional)
● Lens focal length: 4 / 6 / 8mm fixed focus (optional)
● Night vision light distance: 30 meters
Main parameters
● Explosion-proof mark: Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃
● Minimum illumination: 0.005Lux /F1.2(color), 0.001Lux /F1.2(black and white)
●Image function: 3D noise reduction, wide dynamics, strong light inhibition, backlight compensation
● Intelligent detection: mobile detection
● Operating temperature: -40℃~+ 60℃
● Power supply mode: DC12V/POE
● Protection level: IP68
● Product material: 304 / 316L stainless steel material (optional)
Application scenarios:
the product is small in volume, light in weight, convenient in installation, suitable for tanker trucks, flammable and explosive places with small space and close monitoring
